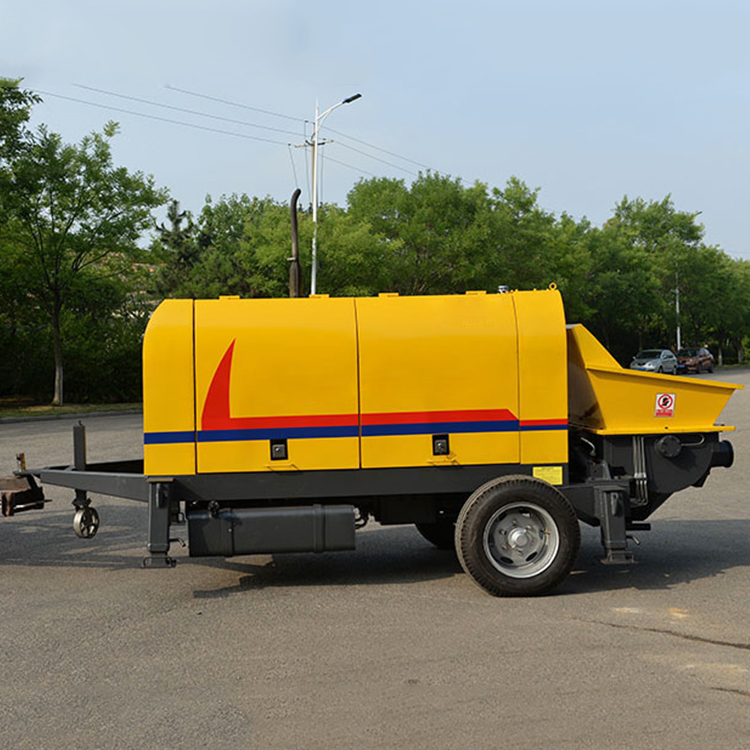

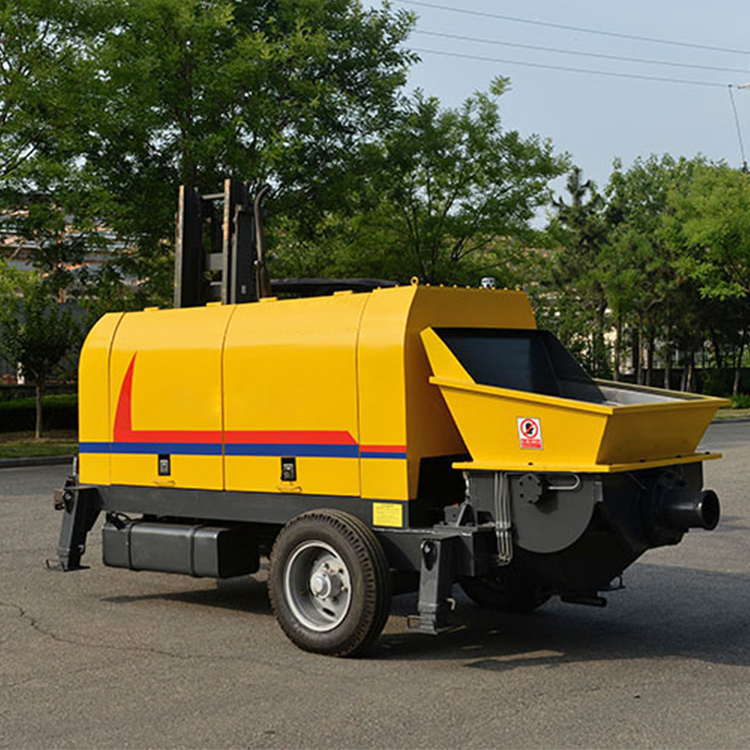

HBTS30 Concrete Trailer Pump

Product Details

Automobile and construction machinery manufacturers

In order to meet the various needs of field construction sites and customers, Elorry has developed a concrete transfer pump powered by a diesel engine. The pump power system adopts a diesel engine that meets emission standards. It has the advantages of reliable performance, stable operation and easy maintenance. It can operate stably in harsh environment, saves cost and can create more benefits.

Product advantages

Product Advantages

Advantage

Save time, effort and labour costs

Advantage

Easy to haul and manoeuvre

Advantage

Safer Construction

Advantage

High conveying efficiency

Advantage

Produces more uniform concrete

technical parameter

product technical parameter

Items		Units	Parameters
Items			HBTS30-6-42R
Whole performance of machine	Max. theo. concrete output	m3/h	30
	Max.concrete pumping pressure	MPa	6
	Distribution valve type		S Valve
	Concrete cylinder diameter×stroke	mm	Ф200x1000
	Hopper capacity×feeding height	L×mm	800x900
	Outlet diameter	mm	Ф180
	Electrical engineering power	kW	42
	Rotate speed	r/min	1800
Hydraulic system	Pumping system pressure	MPa	26
	Distribution system pressure	MPa	6
	Capacity of oil tank	L	220
Other parameters	Max. aggregate diameter	mm	40-50
	Inside diameter of delivering pipe	mm	Ф125
	Dimensions：length×width×height	mm	4800×1750×2200
	Total weight	kg	3500

application

Automobile and construction application

Why Choose ?

HBTS30 Concrete Trailer Pump

We are professional used construction machinery company .
We have sufficient source of goods and guaranteed quality. Base on this,we are able to provide our clients with good condition.machines at special price.We have provided high-quality products and efficient services to customers in more than 300 different countries.
