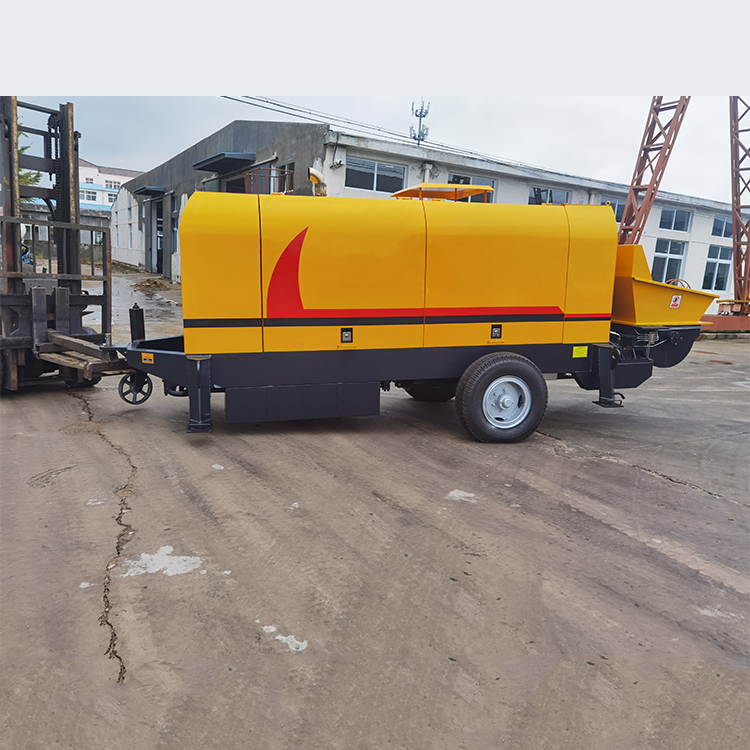

Elorry Concrete Trailer Pump
1. Saving cost; It is much cheaper than concrete boom truck
2. Saving labors; one operator is ok
3. Easy to operate; remote control is available
4. Easy to move; the machine has wheels, we can use a car to tow it to another job site easily
| Items | Units | Parameters | |
| HBTS80-16-176R | |||
| Whole performance of machine | Max. theo. concrete output | m3/h | 84/45 |
| Max.concrete pumping pressure (H. /L.) | MPa | 16/7.6 | |
| Concrete cylinder diameter×stroke | mm | Ф200×1800 | |
| Hopper capacity×feeding height | L×mm | 800×1400 | |
| Outlet diameter | mm | Ф180 | |
| Power system | Electrical engineering power | kW | 176 |
| Rotate speed | r/min | 2200 | |
| Hydraulic system | Circuit type | Open circuit | |
| Pumping system pressure | MPa | 32 | |
| Mixing system pressure | MPa | 6-8 | |
| Capacity of oil tank | L | 370 | |
| The biggest transportation is away from vertically (/Level) | m | 180/1000 | |
| Other parameters | Max. aggregate diameter | mm | Scree:50 40 |
| Inside diameter of delivering pipe | mm | Ф125 | |
| Dimensions：length×width×height | mm | 5800×2000×1750 | |
| Total weight | kg | 8500 | |
