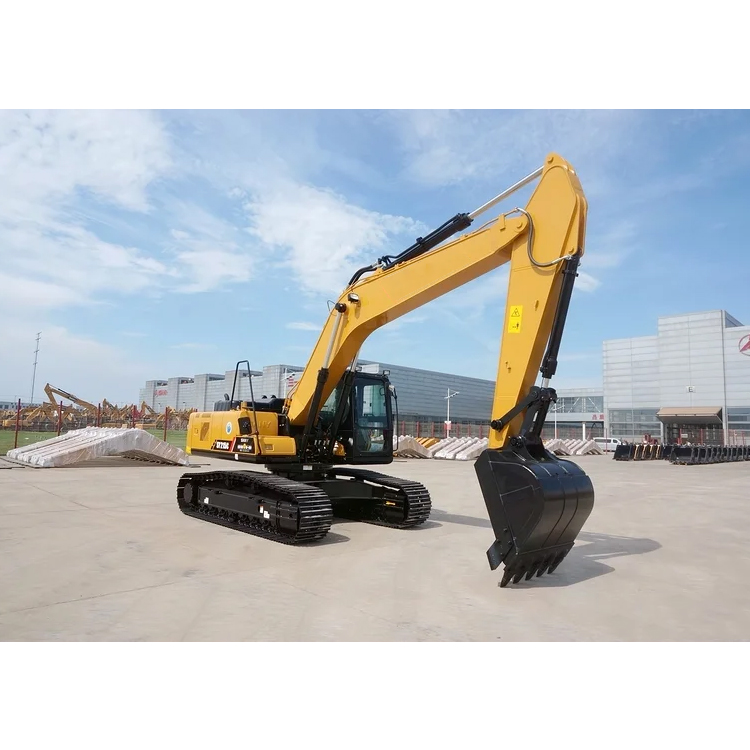

SANY 215C
Superior performance of SANY 215C: Specialised environmentally friendly engine with increased main pump displacement for excellent fuel economy and reduced machine noise to reach the best level in the industry. Superior comfort: powerful new styling.
| Overall dimensions: mm SY215C | |
| A. Overall length (in transportation state) | 9680 |
| B. Overall width | 2980 |
| C. Overall height (in transportation state) | 3440 |
| D. Upper width | 2875 |
| E. Overall height (cab top) | 3075 |
| F. Width of standard track shoe | 600 |
| G. Track gauge | 2380 |
| H. Minimum ground clearance | 440 |
| I. Slewing radius of tail | 2900 |
| J. Ground contact length of track | 3445 |
| K. Track shoe length | 4250 |
| Performance Parameters | SY215C |
| Total weight, kg | 21900 |
| Bucket capacity, m3 | 0.93 |
| Rated power; kW/rpm | 118/2000 |
| Traveling speed (high/low), km/h | 5.4/33 |
| Slewing speed, rpm | 11 |
| Gradeability | 70%/35° |
| Ground pressure, kPa | 47.4 |
| Digging force of bucket, kN | 138/148 |
| Digging force of bucket rod, kN | 103/107 |
| Operating range: mm SY215C | |
| a. Maximum digging height | 9600 |
| b. Maximum unloading height | 6730 |
| c. Maximum digging depth | 6600 |
| d. Maximum digging distance | 10280 |
| e. Minimum slewing radius | 3730 |
| f Maximum height at minimum slewing radius | 7680 |
