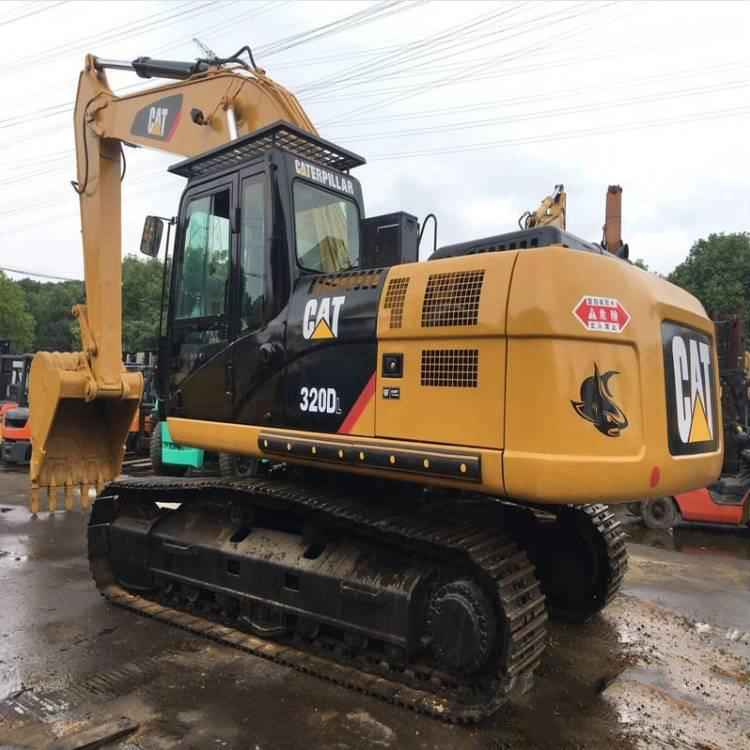

Used CAT 320D Crawler excavator

Product Details

Automobile and construction machinery manufacturers

It has a wide range of uses in areas where the terrain is rough and the amount of earthwork is not large.
1. Good quality
2. Low price and high cost performance (more than 50% cheaper than the original new machine! Exciting price!)
3. There is almost no problem in performance
4. Complete procedures

technical parameter

product technical parameter

Machine type
type	medium
digging method	backhoe
way of walking	crawler
drive mode	hydraulic
performance parameters
Standard Bucket Capacity(m³)	1
Walking speed (km/h)	5.5/3.5
Gradeability(%)	70
Bucket Digging Force(kN)	125.7
Stick Digging Force(kN)	103.4
Maximum traction force (KN)	206
Machine working weight (kg)	20930
Rotation speed(rpm)	11.5
engine
Rated power KW (HP)	103
engine model	Cat® 3066TA
Total engine displacement (L)	6.37
Bore x stroke (mm)	102*130
Hydraulic device/transmission system
Maximum flow rate of pilot pump (L/min)	32.4
Pilot pressure(Mpa)	3.9
Stick cylinder bore (mm)	140
Stick cylinder stroke(mm)	1504
Boom cylinder diameter(mm)	120
Boom cylinder stroke (mm)	1260
Bucket Cylinder Bore (mm)	B1 series 120 CB2 series 135
Bucket cylinder stroke (mm)	B1 series 1104 CB2 series 1156
oil capacity
Hydraulic oil tank (L)	120
Fuel tank (L)	410
Engine oil replacement volume (L)	30
Coolant (L)	25
Overall size
Minimum ground clearance (mm)	450
Track Gauge (mm)	2200
Track width(mm)	600
Track ground length (mm)	4075
Transport length (mm)	9460
Transport width(mm)	2800
Transport height(mm)	3050

application

Automobile and construction application

Why Choose ?

CAT second-hand excavator consumesless fuel than regular second-hand excava-tors.

Good strength, sturdy. durable. low fuel consumption, hydraulic pressure is its strength.
