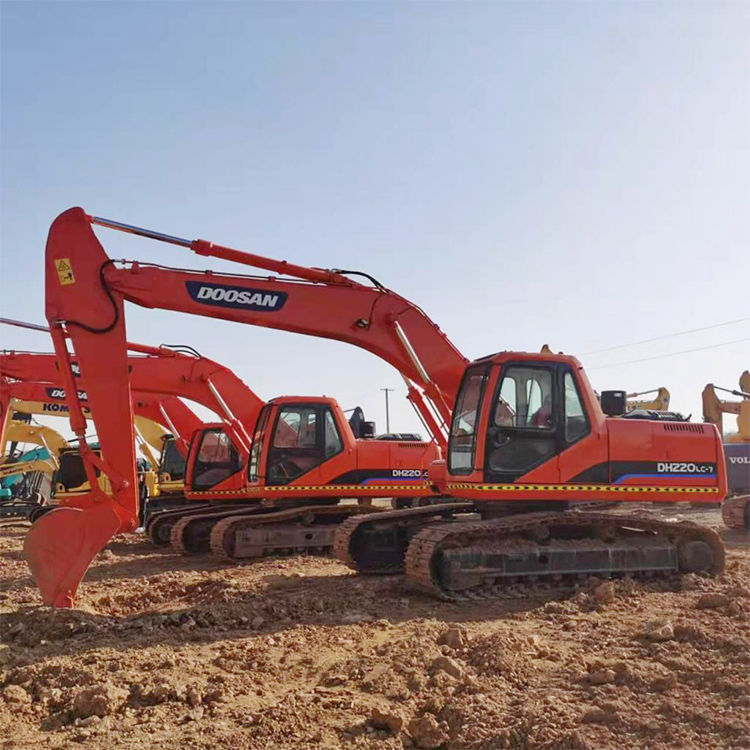

Used DOOSAN DH220LC-7

Product Details

Automobile and construction machinery manufacturers

Used DOOSAN DH220LC-7 adopts new hydraulic technology, which makes the power of the engine reasonably utilised. Used DOOSAN DH220LC-7 adopts advanced electronic control technology, which makes the excavator performance more superior. It is also equipped with a luxurious and comfortable cab interior, which makes the user fearless of fatigue.

technical parameter

product technical parameter

Classification:	crawler excavator
brand:	DOOSAN
Standard bucket capacity:	1.18m³
Vehicle weight:	21400KG
Engine power:	108KW
Engine brand:	Kubota
Rated engine speed:	2000r/min
Maximum digging height:	9660mm
Maximum unloading height:	6810mm
Maximum digging depth:	6660mm
Maximum vertical digging depth:	5600mm
Maximum digging radius:	9970mm
8 feet horizontal maximum digging depth:	6460mm
Boom length:	5700mm
Stick length:	2900mm
Stick digging force (ISO):	96.1kN
Bucket digging force (ISO):	121.6kN
Bucket capacity range:	0.5～1.18m³
Main pump type*quantity:	Variable displacement axial piston race pump
The maximum flow of the main pump:	2×116L/min
Pilot Pump Type*Quantity:	gear pump
Pilot pump maximum flow:	27.7L/min
Track shoe width:	600mm
Track length:	3495mm
Track center distance/gauge:	2000mm
Track ground length (wheel spacing):	2780mm
Tail turning radius:	2200mm
Minimum ground clearance:	410mm
Counterweight ground clearance:	920mm
Boarding platform width:	2490mm
Alighting Platform Width:	2600mm
Overall cab height:	2830mm
Machine length:	7700mm
Machine full width:	2600mm
Overall height of the machine:	2830mm

application

Automobile and construction application

Why Choose ?

Small excavators are cheap, light weight, easy to maintain and repair,and have distinct advantages.

The true advantage of small excavators lies in their ecology.

Beneficial for transportation and moving the workplace. Small excavators are beneficial for relocation between construction sites.

High return on investment. Small excavators have low prices and fast cost recovery.
