Used KOMATSU PC200

Product Details

Automobile and construction machinery manufacturers

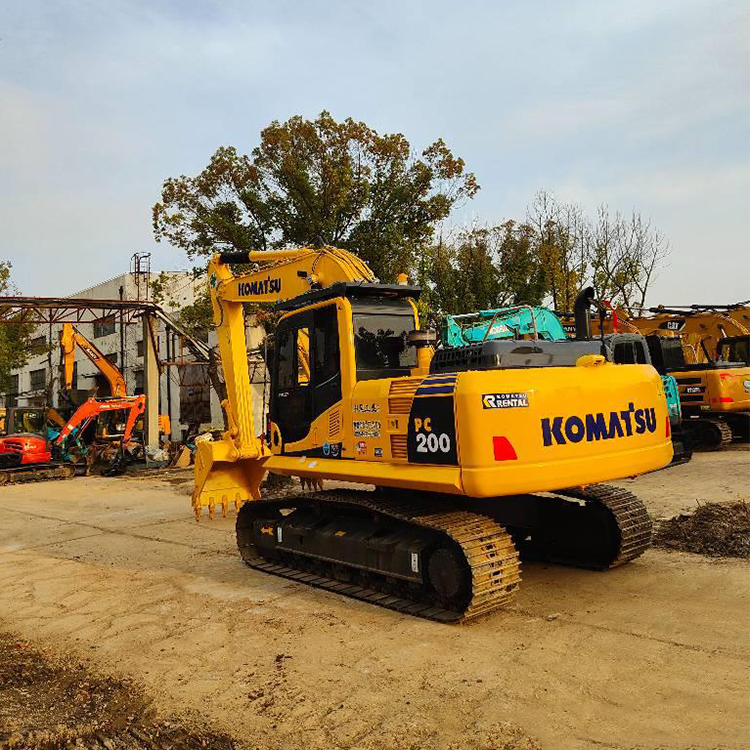

This Used komatsu PC200 Crawler Excavator has been upgraded in terms of construction performance and equipment reliability, and is perfectly suited for a wide range of working conditions. "It has a more stable frame and a more durable rotary table! Pressing the one-touch power-up button can provide greater digging force." Energy saving and consumption reduction is another big advantage of it. By optimizing the control system and hydraulic system, the power is matched and the fuel consumption is much lower.

technical parameter

product technical parameter

Unit	PC200-7
working weight			kg	19700
rated power			ps(kw)	145(107)
Standard Bucket Capacity			m	0.8
Largest traction			kgf	17700
performance	Walking Speed	high speed	km/h	505
		medium speed	km/h	401
		low speed	km/h	3
	spinning speed		rpm	12.4
	Bucket digging force (maximum)		kg	15200
	Stick digging force (maximum)		kg	14800
Dimension	a. Full length (transportation state)		mm	9425
	b.Full width		mm	2800
	c. Full height (transportation state)		mm	3000
	d. Minimum ground clearance		mm	440
	e. Tail rotation radius		mm	2750
Work scope	A. Maximum digging height		mm	10000
	B. Maximum unloading height		mm	7110
	C. Maximum digging depth		mm	6620
	D. Maximum Vertical Wall Excavation Depth		mm	5980
	E. Maximum digging depth when digging out of 8' level		mm	6370
	F. Maximum digging distance		mm	9875
	G. Maximum digging distance at ground level		mm	9700
	H. Maximum turning radius		mm	3040
	I. The maximum height at the minimum turning radius		mm	7570
Engine	name		-	SAA6D102E-2
	form		-	4 Stroke, water cooling,
	Rated speed		rpm	1950
	Displacement		l	5.883
Oil volume	fuel tank volume		l	400
	Hydraulic oil tank volume		l	143

application

Automobile and construction application

Why Choose ?

Komatsu's second-hand excavator consumes less fuel than regular second-hand excavators

Good strength, sturdy.durable,low fuel consumption,hydraulic pressure is its strength.

Overall good coordination, fast speed not easy to break, good value preservation.

The excellent features of this car design are its flexible operation and durability.
