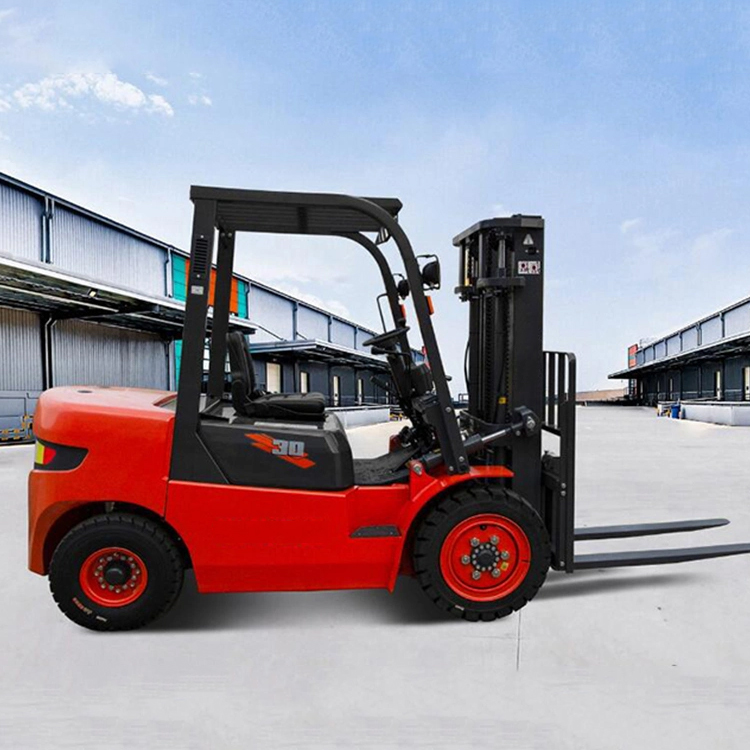

HELI FD30

FD30 Forklift is a transportation vehicle,used for loading and unloading,short distance transport,heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.

QUOTE nOW

Send Inquiry

Product Details

Advantages

Technical Parameter

Application

Why Choose ?

Message

SEND EMAIL

Product Details

Automobile and construction machinery manufacturers

HELI CPCD30 Forklift is a transportation vehicle,used for loading and unloading,short distance transport,heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.

Product advantages

Product Advantages

Advantage

High safety.

Advantage

Low noise and energy saving,

Advantage

Environmental protection

Advantage

Can meet different driving needs.

Advantage

High efficiency and energy saving.

technical parameter

product technical parameter

model			FD30(T)
power form			Diesel
Rated load		kg	3000
load center distance		mm	500
Maximum Lifting Height		mm	3000
free lift height		mm	165
Fork size		mm	1070×125×45
Front suspension		mm	478
rear overhang		mm	522
Overall dimension	total length	mm	3770
	total width	mm	1225
	The mast does not rise	mm	2077
	safety frame height	mm	2100
Shelf (fork) height		mm	1077
Minimum turning radius		mm	2460
Minimum Right Angle Stacking Aisle Width		mm	4155
Maximum travel speed (full load/no load)		Km/h	20/20
Maximum lifting speed (no load/full load)		mm/s	430/420
Maximum grade		%	20
Self-respect		kg	4220
Tire	front wheel		28×9-15-14PR
	rear wheel		6.5-10-10PR
Tired	front wheel	mm	1000
	rear wheel	mm	980
wheelbase		mm	1700
Minimum ground clearance	Door frame	mm	132
	frame	mm	165
model			Quanchai QC490GP	XINCHAI C490BPG
rated power		kw	39	40
Rated torque		N·m/r	157/1980	160/1800-2000
Number of cylinders			4	4
Displacement		L	2.67	2.67
fuel tank capacity		ltr	60	60

application

Automobile and construction application

Why Choose ?

This machine is easy to operate, Cat quality, and low fuel consumption.

Dieselengines have high compression ratio, high thermal efficiency,and very low fuel consump-tion compared to gasoline engines.

In terms of operability the automatic transmission forklift adopts anautomatic gearbox, which can automatically adjust the transmission.

Diesel fuel has a low ignition point, which is relatively safe and less likely to causefires.
