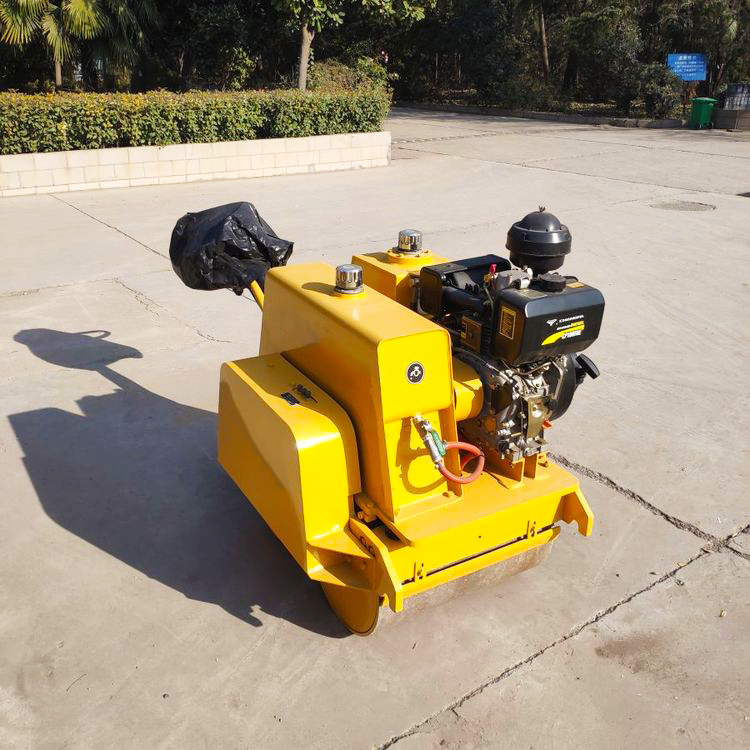

LTC08H smaller road roller

Product Details

Automobile and construction machinery manufacturers

Main Features
1.The whole machine has a nice shape,compact structure and small size;it can do rolling work in narrow ground;
2.All wheel drive,strong climbing ability.
3.Using CF186F vertical direct-spray air-cooled engine,with both electrical and manual startup devices;
4.Designed with guide wheel and joystick ,it is labor saving and easy to control.
5.Hydraulic travel,adopt imported pump&starting motor,CVT.

Product advantages

Product Advantages

Advantage

Small size and reasonable structure

Advantage

Wide range of applications

Advantage

Simple maintenance

Advantage

Super cost-effective

Advantage

Affordable price

technical parameter

product technical parameter

Model		LTC08H
Operating Mass	kg	770
Static Linear Load	N/cm	62/62
Vibration Amplitude	mm	0.25
Vibration Frequency	Hz	48
Centrifugal Force	KN	12
Travel Speed	Km/h	0-4
Grade Ability	%	40
Turning Radius	mm	2700
Turning Angle	°	±30
Overall Dimension	mm	2400×880×1100
Vibration Drum Diameter	mm	400
Vibration Round Width	mm	600
Wheelbase	mm	470
Diesel Power	kw	5.68
Diesel Model		CF186F
Rated Speed	r/min	2600
Diameter X Travel	mm	86x70
Discharge Volume	mL/r	10
Drum Thinckness	mm	13
Drum width	mm	60
Drum Dirmeter	mm	40
Fuel Oil Capacity	L	5.5
Water Capacity	L	32
Hydraulic Oil Capacity	L	10
Fuel Consumption		2K-100

application

Automobile and construction application

Why Choose ?

LTC08H Smaller Road Roller has superior quality, efficiency, performance, and gradually become the key driver in the construction of the driver, its existing highlights, successive advantages, but also slowly praised by all. Comfortable and easy to manoeuvre, this roller is low-maintenance, has a longer service life and remains efficient throughout its long life cycle.
