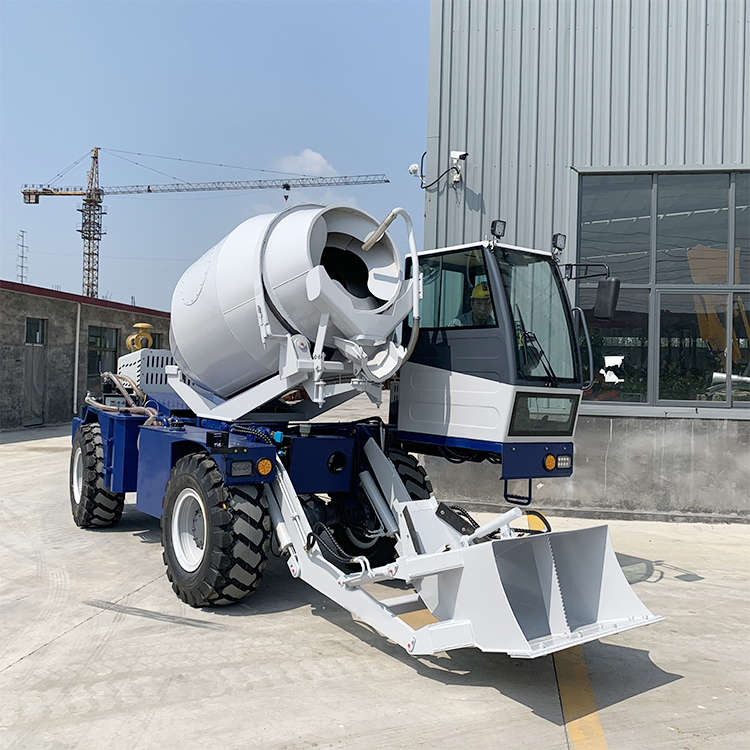

EL200 Self Loading Mixer Truck

Product Details

Automobile and construction machinery manufacturers

What benefit can take you EL200 self loading concrete mixer
1.High quality main hydraulic components !
2.Save 5 labours at least every day.
3.Don't need electric concrete mixer, save electricity up to 100 degress every day!
4.Don't need concrete mixer truck anymore!
5.Don't need wheel loader to load material anymore!
6.This car has many configurations and models.

Product advantages

Product Advantages

Advantage

Replace wheel loaderto load material

Advantage

Replace concrete mixer to mix material

Advantage

Rotatable mixing drumsaves time and labour

Advantage

Save 4 to 6 laborers per day

Advantage

Save 100 kw.h per day

technical parameter

product technical parameter

EL200 self loading concrete mixer
Performance
ELModel	EL200
Total weight	KG	6200
Drive model		4*4
Wheel base	mm	2000
Tyre	Engineering steel wire tyres	16/70-20
Max. speed	KM/H	25
Max.angel	°	30
Dimmension	（LWH）mm	625424003092
Engine
Brand	Yunnei
Power	76KW
Mix system
Geometric volume	m³	2.5
Mix volume	m³	2
Water tank capacity	L	350
Fuel tank capacity	L	180

application

Automobile and construction application

Why Choose ?

2.0 m³ self-loader concrete mixer has the characteristics of narrow body, short wheelbase, small turning radius and other personalized design, and has strong advantages in the working environment of limited height, width and length. The mixing tank can be rotated 270°, and the machine can be unloaded on all sides without moving, and only one person can operate it during operation.
