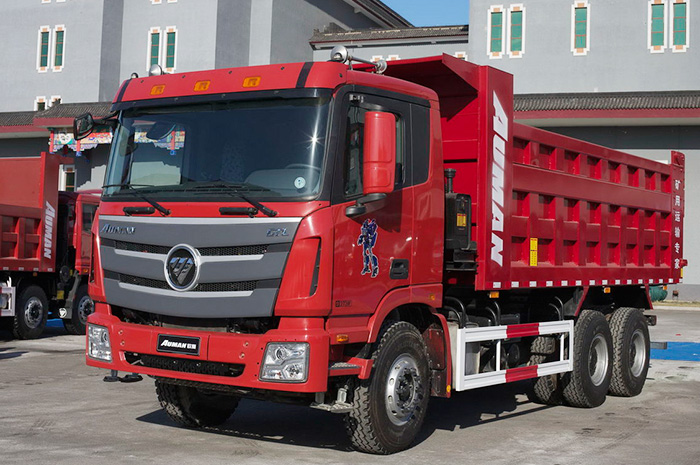

Foton 6x4 GTL 19 Cubic Meters Dump Truck

Product Details

Automobile and construction machinery manufacturers

Combining all aspects, the Foton GTL Dump Truck with strong fighting power is not only outstanding in space, but also worthy of your praise in appearance, power, comfort, handling and fuel consumption. Therefore, the cost performance of Foton GTL Dump Truck speaks for itself. To sum up, the more the auto industry moves forward, the more the variety of good cars becomes, and the way to win for auto brands is to capture the hearts of the buying public, just like the Foton GTL Dump Truck.

Product advantages

Product Advantages

Advantages

Smooth and layered design

Advantages

Powerful and satisfying

Advantages

Large load capacity

Advantages

Comfortable, solid and reliable chassis

Advantages

Low fuel consumption, good economy

technical parameter

product technical parameter

【Model】				BJ3253DLPJB-7
【colour】				【red】
【Features】				Dump truck
【drive】				6×4
GVW(kg)				50T
Size parameters		【(length × width × height) (mm)】		7782X2495X3400
		【Wheelbase 】(mm)		3400+1350
Quality parameter		【Maximum design mass (kg)】		32000
		【Curb weight (kg)】		13500
		【Rated payload （kg）/person】		/3人
Main performance parameters		【Maximum speed】 (km/h)		73.8(5.73)
		【Maximum grade】(%)		44.8(6.72)
basic configuration	Body and appliances	Cab	Type	Flat top ETX-2490
			【Interior】	ETXinterior
			Mounting type	Semi-floating spring
			【Cab lift】	Manual
				Manual doors and windows + hydraulic seat + manual rearview mirror
			【Entertainment system (including radar)】	MP3 + radio + USB
				165Ah
		【air conditioning】		Install air conditioning
	power	【engine】		【Diesel】
		【Fuel type】		WD615.44
		Rated power [kw / ps (r / min)]		330
		Torque [N • m (r / min)]		1250/1400-1600
		【Fuel injection system】		Mechanical pump / domestic pump
		【Displacement】 (ml)		9726
		【emission】		Euro Ⅱ
		【fan】		rigidity
		【transmission】		12JSD160T铁（Q）
		【Front axle(T)】		7.5T
		【Rear axle(T)】		13t 5.73
	Chassis	【Frame specifications】		Front 865/back 865
		【Suspension System】		Front, longitudinal leaf spring + cylindrical shock absorber + stabilizer bar,9
				Rear, longitudinal leaf spring + balance suspension + stabilizer bar,12
		【Steering gear】		AM80L
		【Tire】		12.00R20 18PR
		【Fuel tank volume / material】		260L Aluminum alloy
		【Air filter type】		desert
		【Muffler type】		Horizontal square
Tops	【Container size 】（mm）			5200X2300X1500
	【Lifting method】			Front top
	【Container thickness】			Bottom8 side6
	【Cargo shape】			(Rectangular bucket)
	【Material】			Q345

Why Choose ?

1. Appearance of Foton GTL Dump Truck
Foton GTL Dump Truck model is smooth, the rear design is very layered, and the overall body proportion looks harmonious in the planning. In short, the sharp planning senses successfully attract the attention of car buyers to the Foton GTL Dump Truck.

2. Powerful Foton GTL Dump Truck
Power is one of the reasons why I love and insist on choosing it, this vehicle is equipped with 11.6L displacement Weichai 6-cylinder diesel engine, and the drive form is 8X4, which can output the maximum horsepower 375.

3. Foton GTL Dump Truck has a large load capacity
The Foton GTL Dump Truck's dimensions are 7782X2495X3400, which can meet the needs of general merchants.

4. The comfort of Foton GTL Dump Truck is very good
Regarding ride comfort, the cab of Foton GTL Dump Truck is particularly comfortable and spacious. At the same time, the cushions are soft and firm, giving a satisfying comfort in all road conditions, and the chassis is firm and reliable with high ground clearance whenever driving on rough roads. The air conditioning cooling is great.

Customer Cases

With the advantages of reliable quality, advanced technology and cost-effective price, Elorry Industrial has already sent orders to Africa, South America, Middle East, Europe, North America, Southeast Asia and other countries and regions. The smooth delivery of these orders has laid the foundation for Elorry Industrial to move towards the international market, and at the same time has greatly enhanced Elorry's popularity in the international market.

These vehicles, no matter from the appearance of styling, driving comfort, vehicle safety and reliability are fully satisfied with the mainstream products in the local market, especially equipped with strong engine power, high reliability, and good economy, effectively reducing operating costs.

Among them, Dump Trucks are widely favored by customers for their excellent product quality: low center of gravity, light deadweight product design, enhance vehicle stability to reduce fuel consumption, reduce tire wear, etc., which can really realize cost reduction and efficiency for customers.
