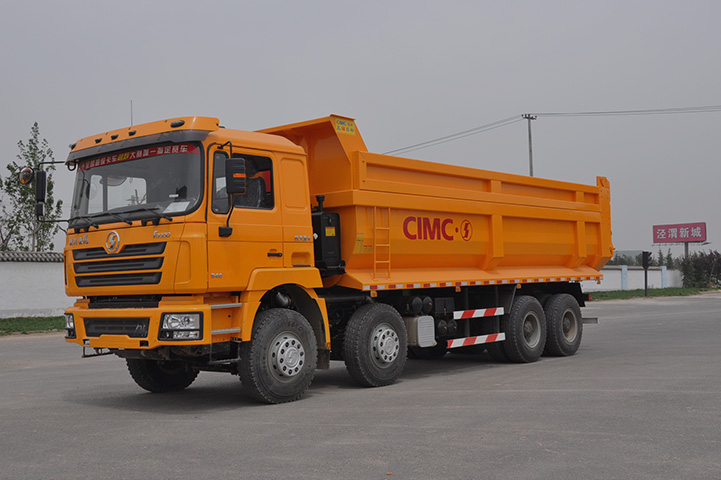

Shacman 8x4 F3000 25-30 Cbm Dump Truck

Product Details

Automobile and construction machinery manufacturers

SHACMAN F3000 8*4 dump truck frame adopts high-strength rigid plate, through the international leading CAE analysis and finite element topology optimization, the new frame structure design, double-layer compression, one-time molding, beam liner beam is optimized from 7mm to 5mm, which makes the structure more reasonable, the center of gravity lower, the deadweight lighter, and the load carrying capacity stronger.

Product advantages

Product Advantages

Advantage

Lighter weight

Advantage

Higher transportation efficiency

Advantage

Safe and reliable

Advantage

Economical and practical

Advantage

High Strength

technical parameter

product technical parameter

Max. running speed (km/h)			82
Drive System			8×4
Dimensions （LWH）(mm)		Overall	9735×2490×3790
		Dump body	7400×2300×1500
Thickness (mm)			Bottom 8, side 6
Hydraulic lifting system			Ф200 Before the lifting
Approach / departure angle (°)			28 / 20
Kerb weight (kg)			15500
Total mass (kg)			31000
Wheel base (mm)			1800+3575+1400
Engine			WEICHAI WP10.380E22 Euro Ⅱ
Horsepower			380 hp
Gearbox			FAST 10JSD180,
Clutch			Ф 430 Diaphragm type
Steering			ZF technology
Cab			F3000 mid-lengthened Cabin with single-sleeper
Axle	Front axle		9.5T MAN
	Rear axle		16Ton MAN axle, final ratio 5.262
Tyre (radial tyre)			12.00R20
Oil tank			300L(Metal) 300L

Why Choose ?

SHACMAN F3000 8*4 is equipped with high-horsepower engine, with large low-speed torque, strong heavy-duty climbing ability, power covering 240-375 hp, fuller diesel fuel combustion, with multi-power fuel-saving switches, de-watering assured filters, fuel-saving thermostatic fan and advanced fuel-saving cylinder breaking technology perfectly matched, better fuel economy, combustion efficiency is improved by 10% compared with the current one, better fuel economy. The whole vehicle is newly optimized and matched with Faster 9-speed gearbox through the international advanced CRUISE software, unique double intermediate shaft structure of main and sub boxes, and Handelsstahl technology drive axle, which makes the transmission efficiency higher. The large box has small deadweight and low center of gravity, which increases the payload of the vehicle, improves driving stability, reduces fuel consumption per unit of payload, reduces tire wear and tear, and the material slides downward with less resistance, unloads quickly, effectively reduces the cost of material transportation, and improves the transportation efficiency of the vehicle.

Customer Cases

With the advantages of reliable quality, advanced technology and cost-effective price, Elorry Industrial has already sent orders to Africa, South America, Middle East, Europe, North America, Southeast Asia and other countries and regions. The smooth delivery of these orders has laid the foundation for Elorry Industrial to move towards the international market, and at the same time has greatly enhanced Elorry's popularity in the international market.

These vehicles, no matter from the appearance of styling, driving comfort, vehicle safety and reliability are fully satisfied with the mainstream products in the local market, especially equipped with strong engine power, high reliability, and good economy, effectively reducing operating costs.

Among them, Dump Trucks are widely favored by customers for their excellent product quality: low center of gravity, light deadweight product design, enhance vehicle stability to reduce fuel consumption, reduce tire wear, etc., which can really realize cost reduction and efficiency for customers.

If you are looking for Transport Truck and Passenger Vehicle, or Engineering Machinery, contact us today! Our sales managers are available 24/7 to assist you! Our sales managers are available 24/7 to assist you!
