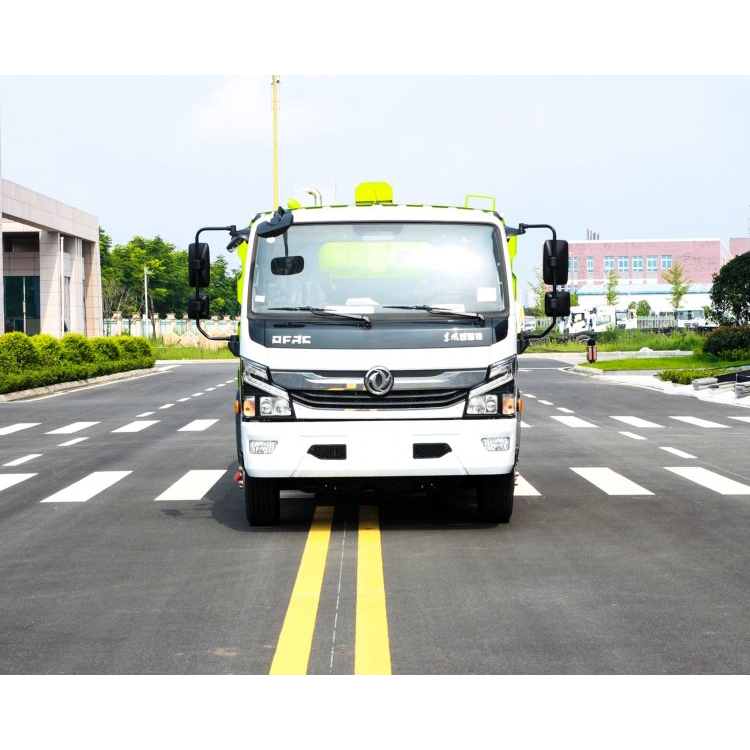

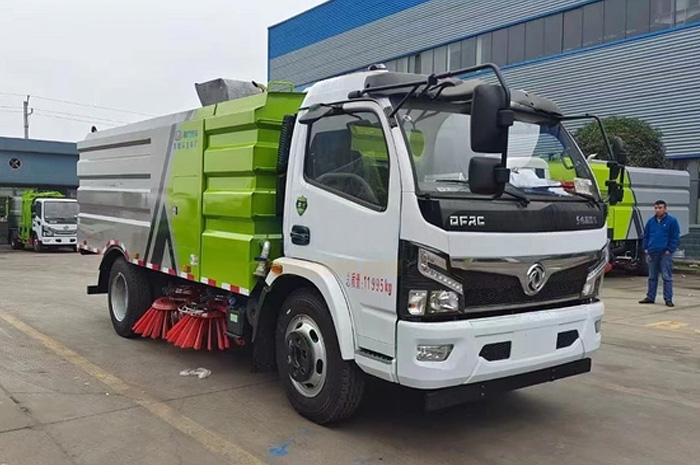

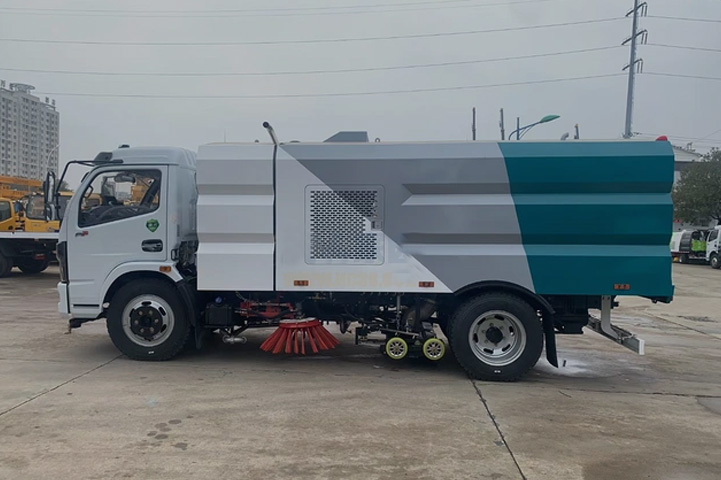

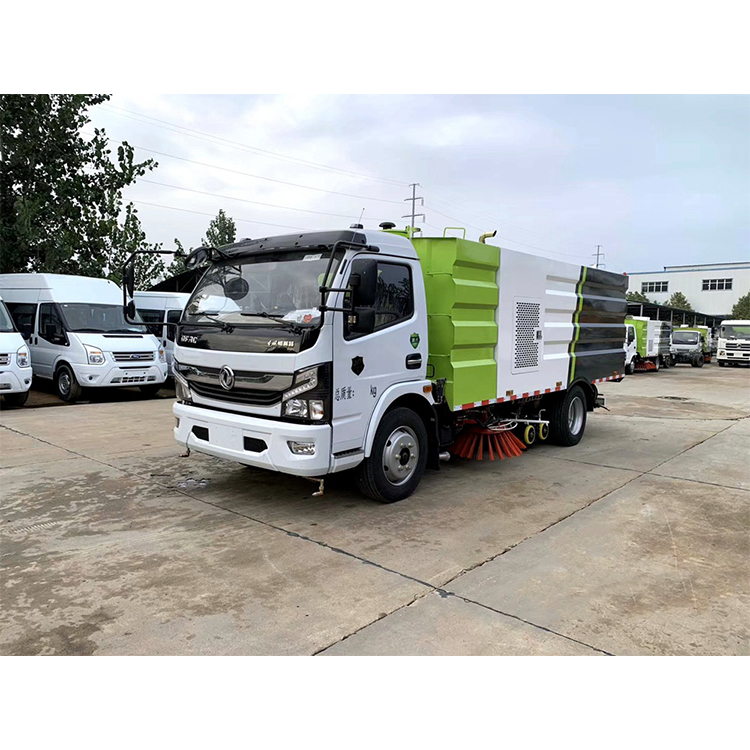

DONGFENG ROAD SWEEPER TRUCK

Product Details

Automobile and construction machinery manufacturers

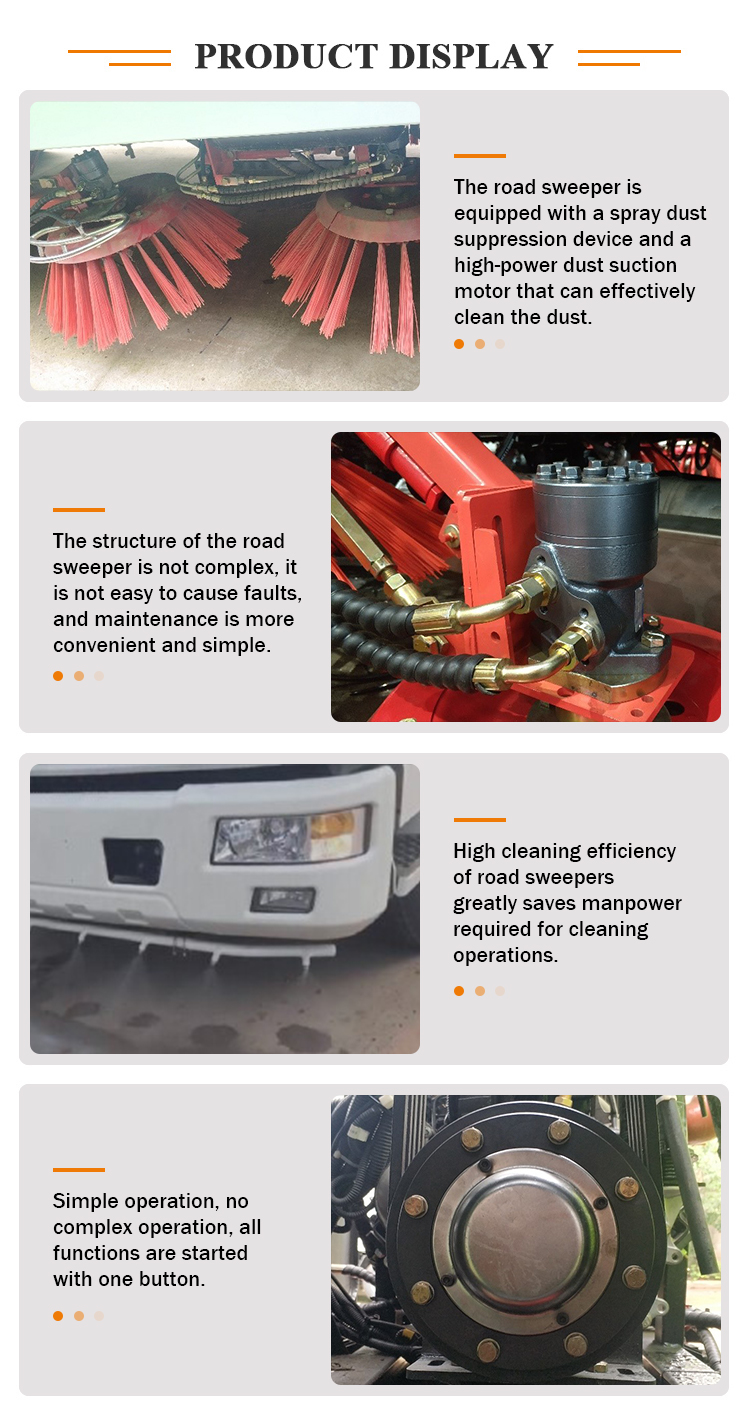

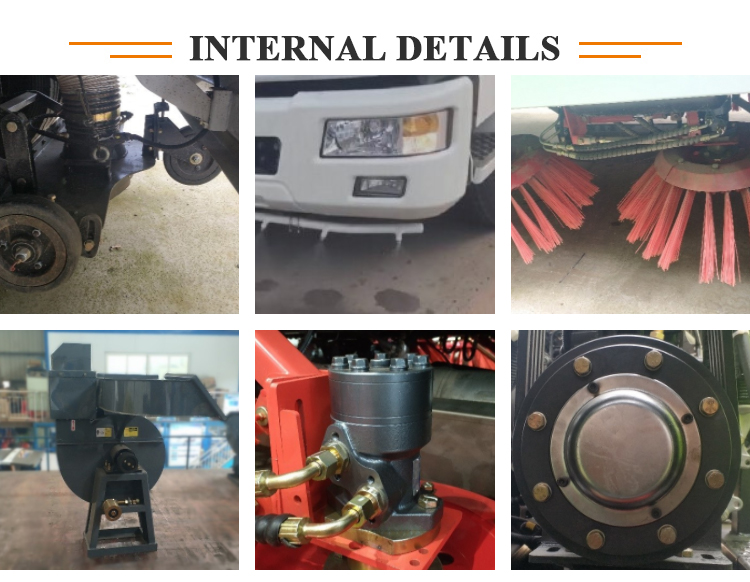

DONGFENG ROAD SWEEPER adopts the arrangement of center-mounted two-disk brush + center-mounted wide suction nozzle (built-in high-pressure spray bar) + center-mounted high-pressure side spray bar, which is convenient for sweeping device. It is driven by international hydraulic motor, which is stable and reliable, and the speed of the sweeper can be adjusted according to different sweeping conditions, which ensures good sweeping effect under various pollution conditions.

Product advantages

Product Advantages

Advantage

Widely used in various scenes

Advantage

Adopting international hydraulic motor, stable and reliable.

Advantage

Good sweeping effect

Advantage

High degree of intelligence, low failure rate

Advantage

Improve air quality

technical parameter

product technical parameter

Completed truck specification
Brand	DONGFENG
Name of products	Road sweeper truck	Product model	EL5070TSLD5
GVW(Kg)	7360
Rated payload(Kg)	2190	Overall dimension(mm)	6200,5950×2000×2590,2380
Curb weight(Kg)	5040
Approach/Departure(°)	‘20/12	Front overhang/rear overhang (mm)	1040/1852,1040/1602
Axle payload(Kg)	1800/3500	Max weight(Km/h)	99
Chassis specification
Chasis model	EQ1070SJ3BDF
Axle	2	Tyre number	6
Wheelbase (mm)	33,082,800
Tyre model	7.00-16,7.00R16
Leaf spring	6/6+5	Front tread(mm)	1,503,148,515,191,590
Fuel type	diesel	Rear tread (mm)	149,415,161,540
Engine model	Manufacture	displacement(ml)	Power(Kw)
JE493ZLQ3A	ISUZU	2770	85
Item		Specification
Vice motor		JX493G
Vice motor power		57 kW 77.5hp
Max GVW		6500 kg
Max speed		≥95km/h
Sweeper width		≥2.2m
Water tanker		1 m3
Dustbin tanker		2m3
Operation Speed		3～15km/h
Max working area		45000 m2/h
Max suction diameter		120 mm
Sweep efficiency		≥95%

application

Automobile and construction application

Why Choose ?

DONGFENG ROAD SWEEPER is suitable for highway sweeping and cleaning work at all levels, as the dust is small during the whole operation. The vehicle has strong adaptability, with roadside stone sweeping device, left and right distributed non-dust-raising roll sweeping suction nozzle, sweeping width adjustment and other proprietary core technologies, to solve the current problem of dusty road sweepers, through the air duct conversion device, can also be rainy day operation, all-weather operation can be realized.
