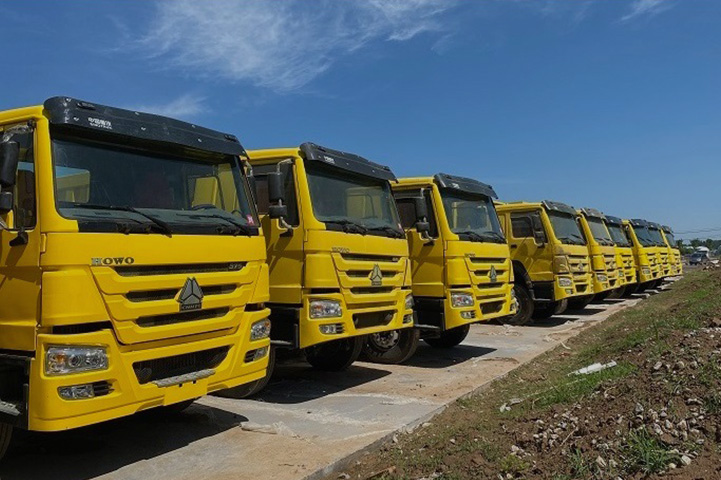

Used Second Hand Howo 6x4 Dump Truck 19 Cbm

Product Details

Automobile and construction machinery manufacturers

Heat resistance, low thermal expansion, high thermal conductivity, good electrical conductivity, good corrosion resistance and wear resistance, high density, radiation absorption, outstanding purity – these are the decisive properties that we perfect depending.Heat resistance, low thermal expansion, high thermal conductivity, good electrical conductivity, good corrosion resistance and wear resistance, high density, radiation absorption, outstanding purity – these are the decisive properties that we perfect depending.

technical parameter

product technical parameter

Truck Model					ZZ3257N3647
Truck Brand					SINOTRUK –HOWO
Driving Type					Left Hand Driving
Dimension(Lx W xH)（unloaded）（mm）					8245x2550x3450
Cargo body size (LWH)					5400x2300x1500 18m3
Cargo body thickness(mm)					bottom:8mm, side:6mm
Lift type of Carriage					Ventral lifting
Approaching angle/Departure angle（°）					19/23
Overhang(front/rear) (mm)					1500/1870
Wheel base (mm)				3625+1350
Max speed（km/h）				75
Curb weight（kg）				12600
Loading Weight（kg）				25000
Fuel tanker capacity(L)				300L with locking fuel cap
Clutch				Single-plate dry clutch Φ430mm
Engine Model (Steyr technology, made in China)	Model			WD615.47
	Horse Power			371HP
	Emission			EURO II
	Fuel Type			Diesel
Transmission		Model		HW19710,10 forwards and 2 reverse
Brake system		Service brake		Dual circuit compressed air brake
		Parking brake		spring energy, compressed air operating on rear wheels
		Auxiliary brake		Engine exhaust brake
Steering system		Model		ZF hydraulic steering with power assistance Ratio：22.2-26.2
Front axle		HF9 , Steering with double T-cross section beam Loading capacity:9000KG
Rear axle		HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity: 16000kg
Color		Optional
Tire		12.00R20 Steel tires 10+1 spare
Electrical system		Operating voltage	24V,negative grounded
		Starter	24V,7.35KW
		Alternator	28V,1500W
		Batteries	2*12V.165Ah
		Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.
Cab		HOWO76 cab, (single sleeper, with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
Instrument Panel		Active check central control with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging

Why Choose ?

The Used Second Hand Howo 6x4 Dump Truck is a reliable and robust vehicle that offers exceptional performance for various industrial and construction applications. Built by the renowned manufacturer Howo, this truck is known for its durability, power, and versatility on the job site.
