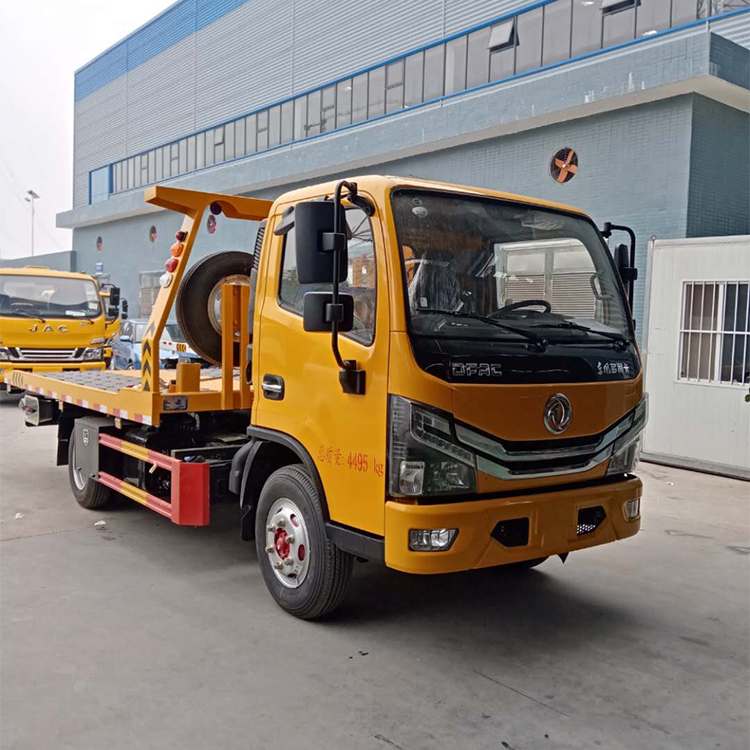

Flat Bed Wrecker Truck

Product Details

Product Description

Dongfeng Flat Bed Wrecker Truck has been welcomed by global users for its superior product quality and affordable price. The full name of the road blockage truck, also known as trailer, by the chassis, lifting device, lifting and traction device, hydraulic system, electronic control system, body and toolbox and other components.

Product advantages

Product Advantages

Advantage

Good comfort, low fuel consumption

Advantage

High stability

Advantage

Save time and labor

Advantage

Stable and efficient

Advantage

Safe and reliable

technical parameter

product technical parameter

VEHICLE MODLE		JDF5071TQZ
OVERALL DIMENSION(mm)		7420×2320×2540	GVW(Kg)	7490
Cargo body dimension(mm)		××	Rated payload(Kg)
approach/depar ture angle		20/12	Curb weihgt(Kg)	5495
Overhang(front /rear)(mm)		1180/2440	Max speed(km/h)	95
Chassis model		EQ1070TJ9AD3
Available engine		Engine maker	Engine displacement(cc)	Power(Kw)
CY4102-C3F		Dongfeng Chaoyang Diesel Engine	3856	70kw/95hp
Fuel type		diesle	Emission	Euro 2\3
Number of axle		2	Number of tire	6
wheelbase		3800	Tire size	8.25-16,7.50-16,8.25R16,7.50R16
Axle load(front/rear)		3090/4400	Front tread	1835,1750
Number of steel spring leaf(front/rear)		11/9+7,8/10+7	Rear tread	1640,1586
special function
performance	Rated tow lifting weight(kg):1040 ; stretch travel range of tow arm（mm）:1180 maximum effective length of tow arm（mm）：1300 maximum traction speed(km/h)：40
Specification of flat board	Dimension of flat board(Lengthwidth)(mm):52402100 Minimum gradient of flat board(°):10 work travel range of flat board(mm):2680 Maximum load weight of flat board(kg):3000
Specification of flat board	The specification of the winch qty(piece)：1 rated towing weight(kg)：3000 the length of steel wire rope(m):21 the speed of winch rope(m/min):8

Why Choose ?

Dongfeng Flat Bed Wrecker Truck
Precision quality is trustworthy

01. Economical fuel consumption: national standard high-power engine, good comfort and low fuel consumption.
02. Imported accessories: multi-way valve, balance valve using Italian imports
03. Safety alarm: the warning light adopts LED long rows of warning lights, used to warn passing pedestrians and vehicles.
04. high stability: the boom adopts high strength, stability far more than the old four-sided structure
05. Safety and anti-dislodgement: the end of the wire rope is equipped with anti-dislodgement hooks, safe and reliable.
06. Save time and labor: double-side linkage operation, winch, boom, plate all one-key operation.
07. Stable and reliable: the front end of the plate is equipped with a baffle plate on each side, effectively preventing the vehicle from moving forward, stable and safe.
